E-Series Amplifiers
Lightweight Class AB Amplifiers
OVERVIEW
The E Series amplifier range includes three Class AB amplifiers, designed to Funktion-One’s specification and manufactured by MC2 to our exacting standards of audio fidelity.
E-Series models include the E15, E25 and E30Q, each offering a sophisticated power control system (linked to both the limiter and the power supply) which keeps the amps within their operating limits at all times. Power Reduction Circuit (PRC) controls on rear panel, linked to the limiter threshold, enable each channel to be independently set so that different loudspeakers can be connected to each channel with safety. Full DC, short circuit and thermal protection, which automatically reconnects when the fault is cleared. Front panel LEDs indicate fault condition. Optional crossover cards available.

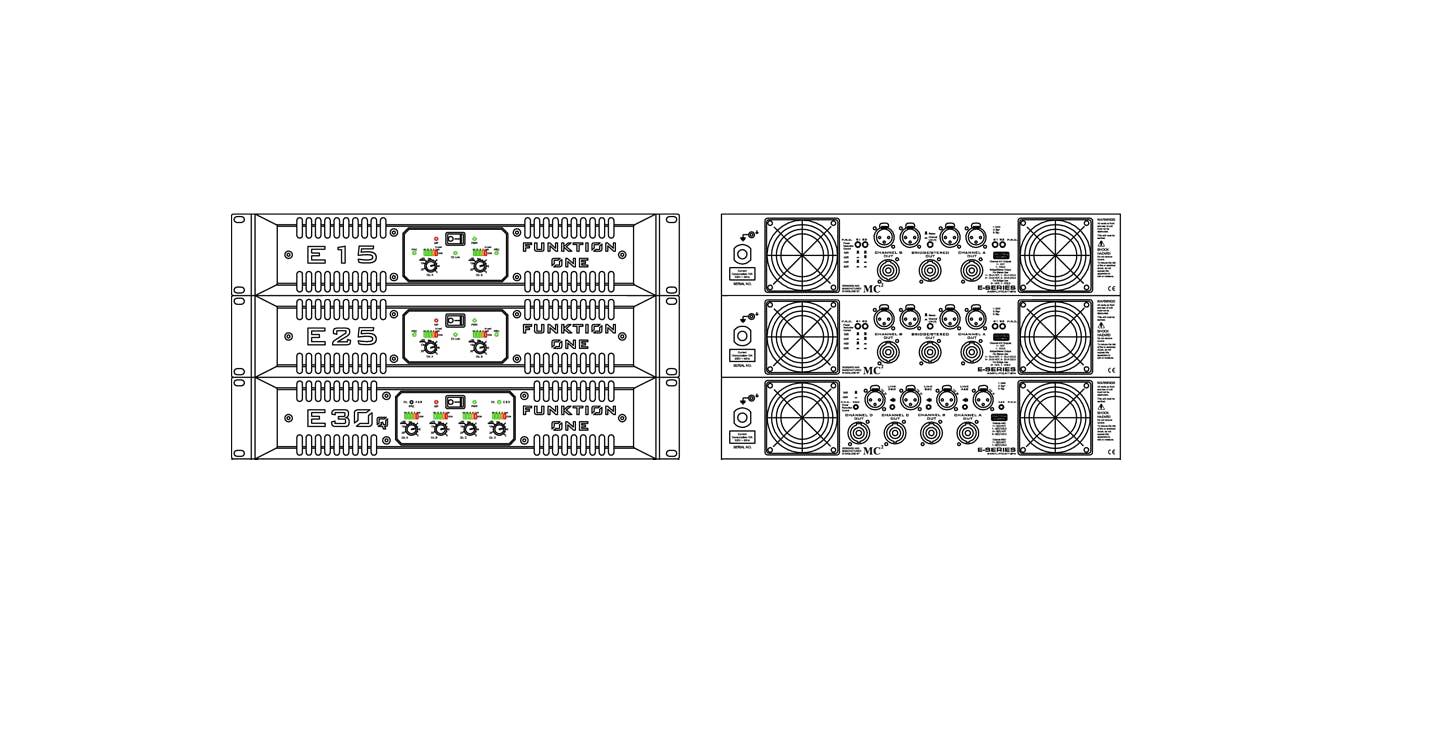

DIMENSIONS
88mm high x 482mm wide x 428mm deep
PLEASE NOTE
The E-Series amplifiers have an opposite airflow to that of the F-Series amplifiers and therefore, when used together in a rack it is advisable to place the F-Series at the top of the rack.
