F-Series Amplifiers
Class D Amplifiers with DSP and Dante options
OVERVIEW
The F-Series amplifier range includes four Class D amplifiers, designed to Funktion-One’s specification and manufactured by Full Fat Audio (FFA) to our exacting standards of audio fidelity.

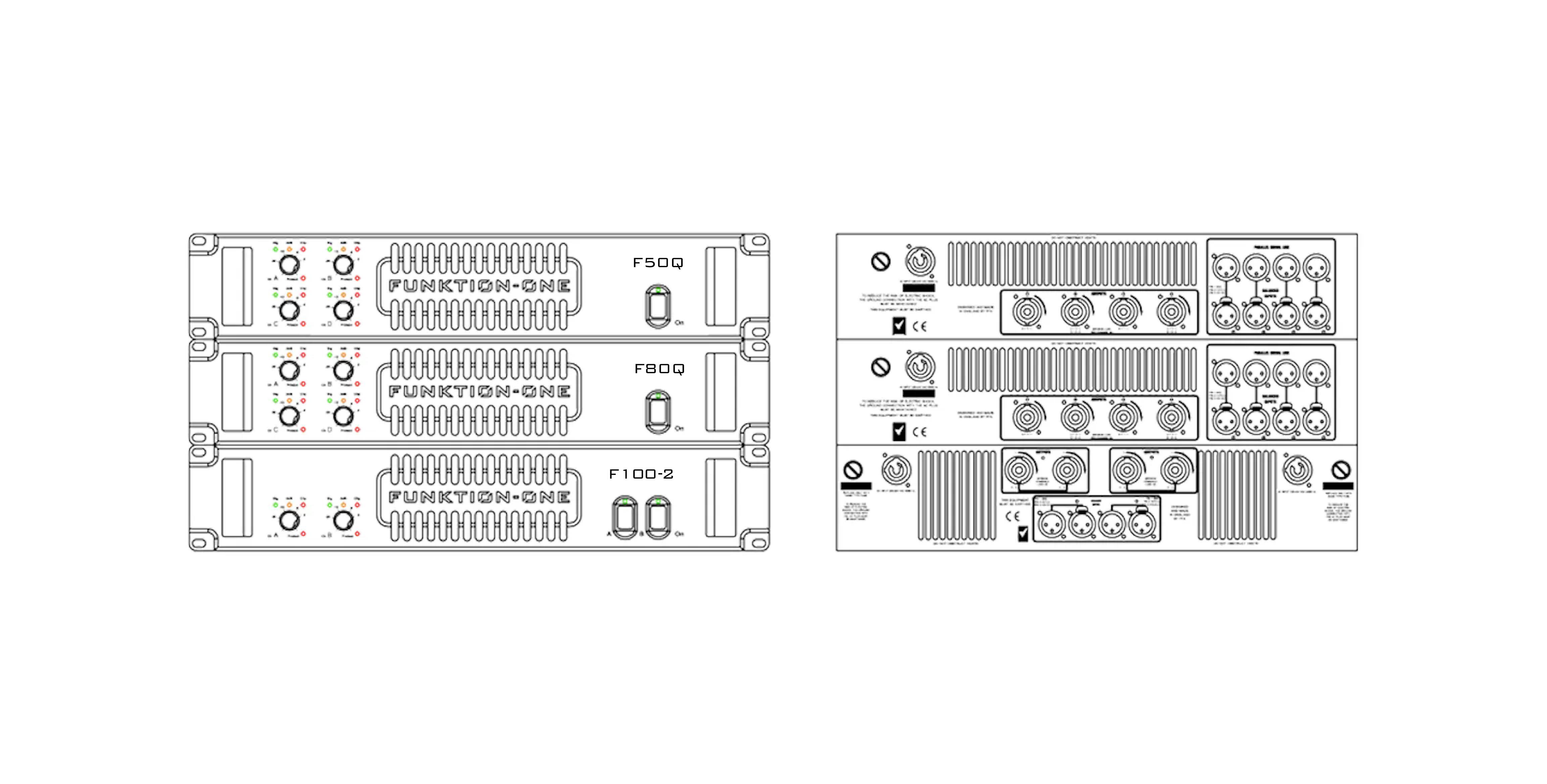

F-Series models include the high power F100-2 dual power supply amplifier (suited to operating into 2Ω loads) and three 4-channel amplifiers (F20Q, F50Q and F80Q). All four amplifiers utilise rugged switch modulation power supplies (SMPS) with Class D Pulse Width Modulation amplifier stages. The 4-channel models are also available with internal DSP. Networking, four inputs and six outputs (four via amplifier channels and two via additional signal channels) and intuitive software offer great flexibility for both live and installation.
DIMENSIONS
483mm x 510mm x 88mm. Includes rear rack support. 19'' rack mount enclosure
WEIGHT
10kg (F20Q, F50Q & F80Q); 12kg (F100-2)
PLEASE NOTE
The F-Series amplifiers have an opposite airflow to that of the E-Series amplifiers and therefore, when used together in a rack it is advisable to place the F-Series at the top of the rack.
Links to control software download for amplifiers with built-in DSP
For Windows >> https://nstaudio.com/software/dnet/D-Net_Setup.exe
For MAC OS >> https://nstaudio.com/software/dnetmac/D-Net_Installer.dmg
- Nominal System Gain32dB
- Total Harmonic DistortionTypical 0.05% at 4Ω, 1kHz THD+N
- Frequency Response20Hz - 20kHz ±0.5dB
- Audio Signal OutputsspeakON
- Mains ConnectorpowerCON
- Power Range185V-240V AC
- System CoolingHigh CFM 80mm fan
