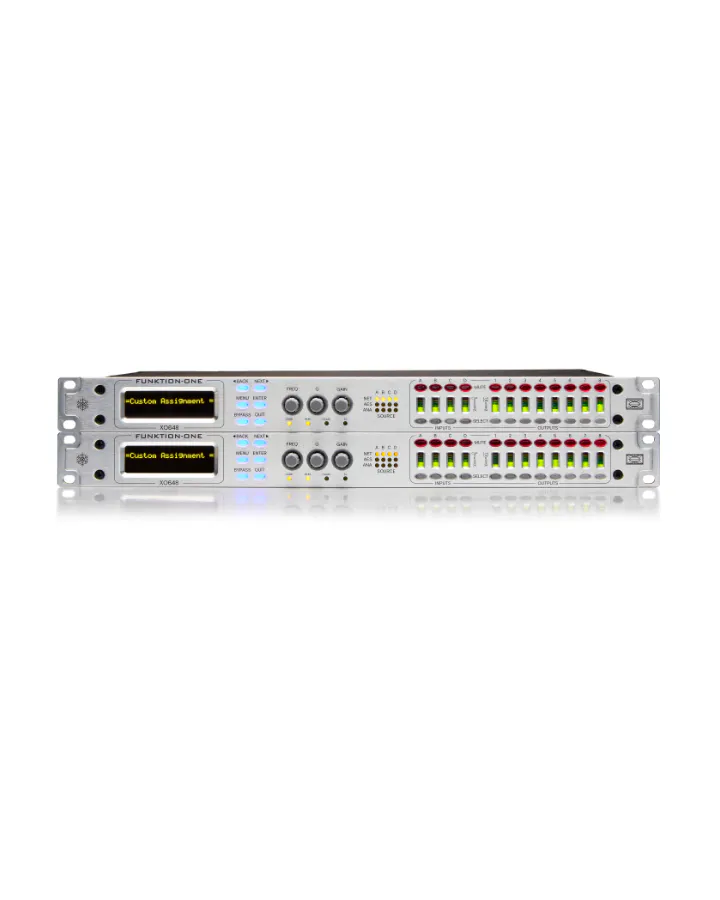

XO648

DSP for live system front-end or installations

OVERVIEW
The XO648 is a highly flexible audio processor
Equally suited as a front-end for large systems driving D-Series amplifiers, or as a main system controller in complex fixed installations. Intuitive control via Globcon software.
For FOH system processor use, the XO648 can be used to receive four channels of Dante or AES3 from mixing consoles with analogue backup, and transmit 8 channels to remote D-Series amplifier racks (e.g. Main, Fill, Delay, Bass etc.)
For installation use, the XO648 pairs perfectly with D-Series non-DSP amplifiers as a loudspeaker management system.
SPECIFICATIONS
- Inputs4x Analogue (balanced XLR), 4x AES3 (shared with XLR C&D), 4x Dante (RJ45), Automatic failover between two source formats
- Outputs8x Analogue (balanced XLR), 8x AES3 (shared with XLRs 2,4,6,8), 8x Dante (RJ45)
- ControlEthernet (RJ45) via Globcon software, GPIO
- ProcessingADC and DAC resolution: 24 bit, Internal sample rate: 96 kHz, Input sample rates: 32-192 kHz
- SystemMains voltage: 60-230VAC nominal 50-60Hz, Mains power: <40W, Mains connector: IEC C13
- Dimensions1U = 44mm x 482mm x 305mm
- Weight3.5kg (7.7lbs), Boxed (shipping) 5kg (11lbs)
