Medium Dispersion, Versatile, Point Source

Overview

Evo 2 is a medium dispersion, high efficiency, fully horn-loaded, 3-way loudspeaker, which features the latest Funktion-One driver technology and highly refined tuning.

Evo 2 has evolved from the iconic Resolution 2 which has been in the marketplace for 25 years. Its outstanding performance capabilities and versatile format make it very appealing across a range of live event and install applications, including as a four-point club system or two-wide flown system for medium sized venues. Its manageable size and innovative Butterfly Plate rigging system enable quick and easy deployment. Evo 2 is perfectly suited to ground stacking for small events, flying singly or in pairs for wider coverage and larger audience areas, or used as fills supporting Vero, Evo or Vero VX systems. Evo 2 can easily be adapted between 3 way active (NL8-tri amp) or 3 way passive mid/hi (NL4-bi amp), it is available in standard Funktion-One violet finish or tough black PU coating. A foam backed grille can be added for a more discreet appearance. A custom flight case is also available for safe transportation of a pair of Evo 2.

PERFORMANCE FEATURES

A truly multipurpose loudspeaker

  • 1
    Full range, stand alone capability
  • 2
    Fully horn loaded, excellent efficiency
  • 3

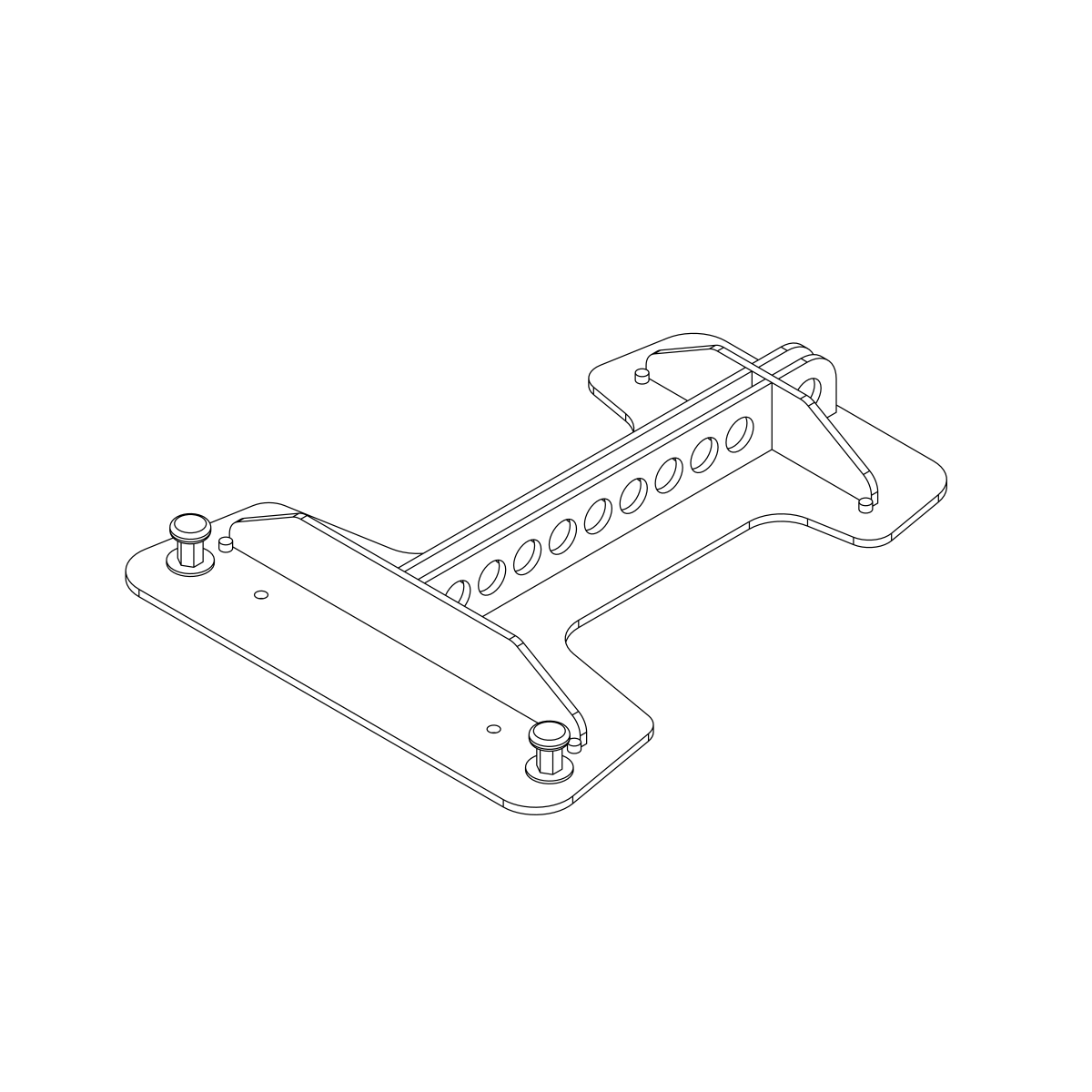

    Butterfly Plate rigging system
  • 4
    Available 3-way active or biamped with passive mid-hi
  • 5
    Optional grille
  • 6

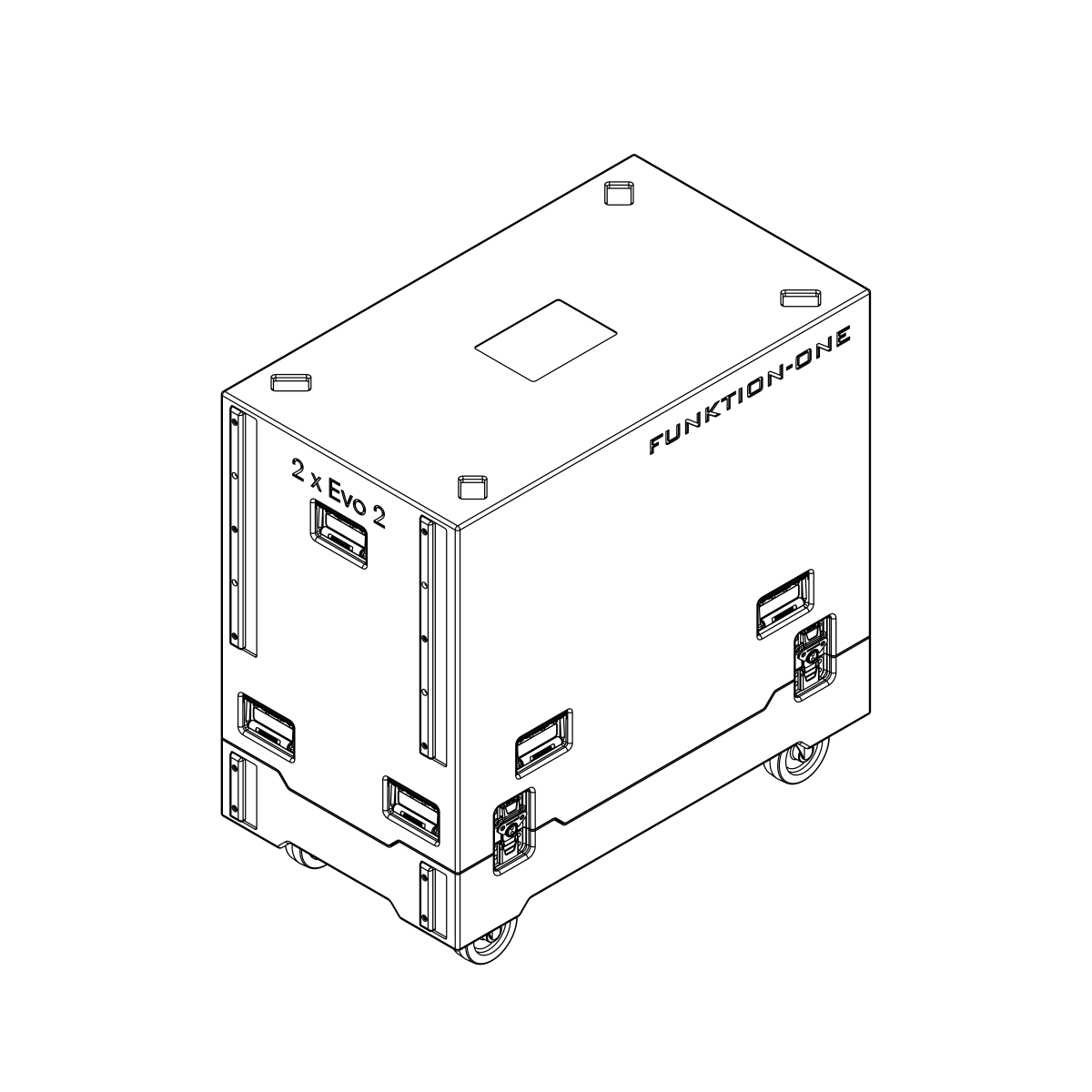

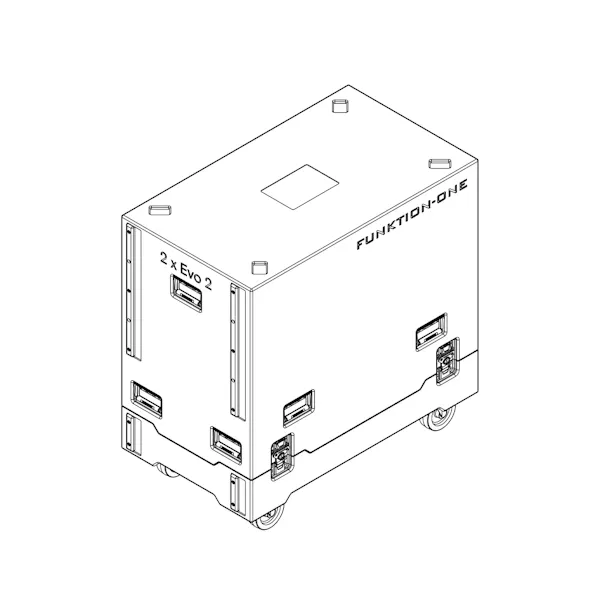

    Custom flight case
  • 7
    Integrated M10 points for install use

Technical Specification

Driver 12"
Operating Band 60/85Hz - 280Hz
Sensitivity at 1m 100dB at 2.8V
Power (AES) 600W
Nominal Impedence
Driver 8" (Tri-amp)
Operating Band 280Hz - 5kHz
Sensitivity at 1m 107dB at 4V
Power (AES) 200W
Nominal Impedence 16Ω
Driver 1" (Tri-amp)
Operating Band 5kHz - 18kHz
Sensitivity at 1m 108dB at 4V
Power (AES) 75W
Nominal Impedence 16Ω
Driver 8" + 1" (Bi-amp)
Operating Band 280Hz - 18kHz
Sensitivity at 1m 107dB at 4V
Power (AES) 200W
Nominal Impedence 16Ω
USABLE BANDWIDTH (-3DB) 85Hz - 18kHz
Weight 36kg (80lbs)
Nominal Dispersion 50° Horizontal x 25° Vertical
Connectors 2 x Neutrik NL8 (triamp) or NL4 (biamp) option
