Medium Dispersion, Arrayable Point Source


Evo 6E is a high intensity point source loudspeaker with wide 50° horizontal dispersion.

It boasts class leading efficiency and performance, has 50° nominal horizontal dispersion and physically arrays at 40°, two wide giving smooth coverage over 90°. It is perfect for a wide variety of larger applications and all genres of music. Evolution 6E systems offer state-of-the-art Funktion-One sound quality. We recommend their use with F124, F121, F221 or BR221 bass enclosures.


Class leading efficiency and performance

  • 1
    Fully horn-loaded for high efficiency
  • 2
    Three-way design
  • 3
    Funktion-One designed drivers
  • 4
    Low weight Neodymium Magnets throughout
  • 5

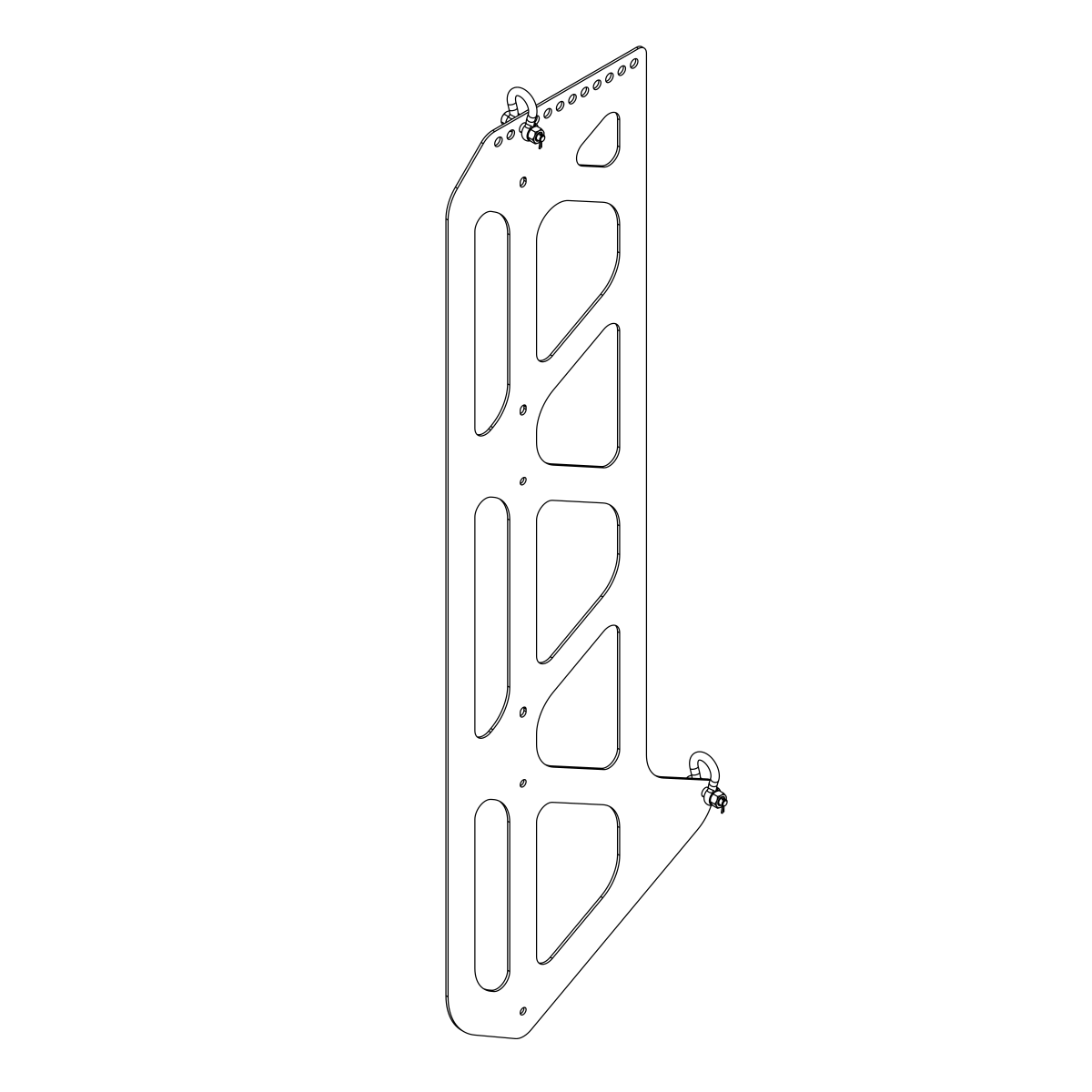

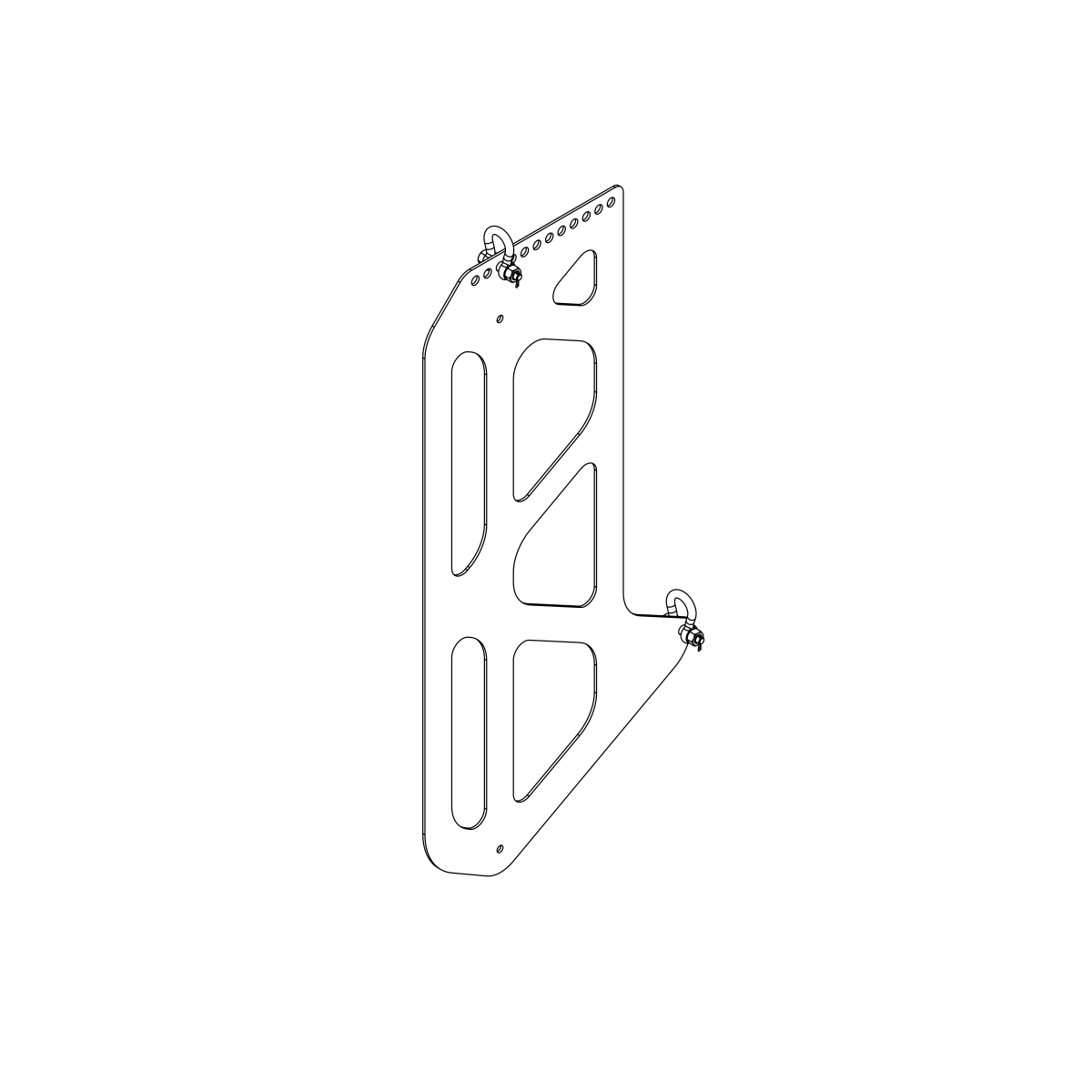

    Fitted with M10 flypoints
  • 6

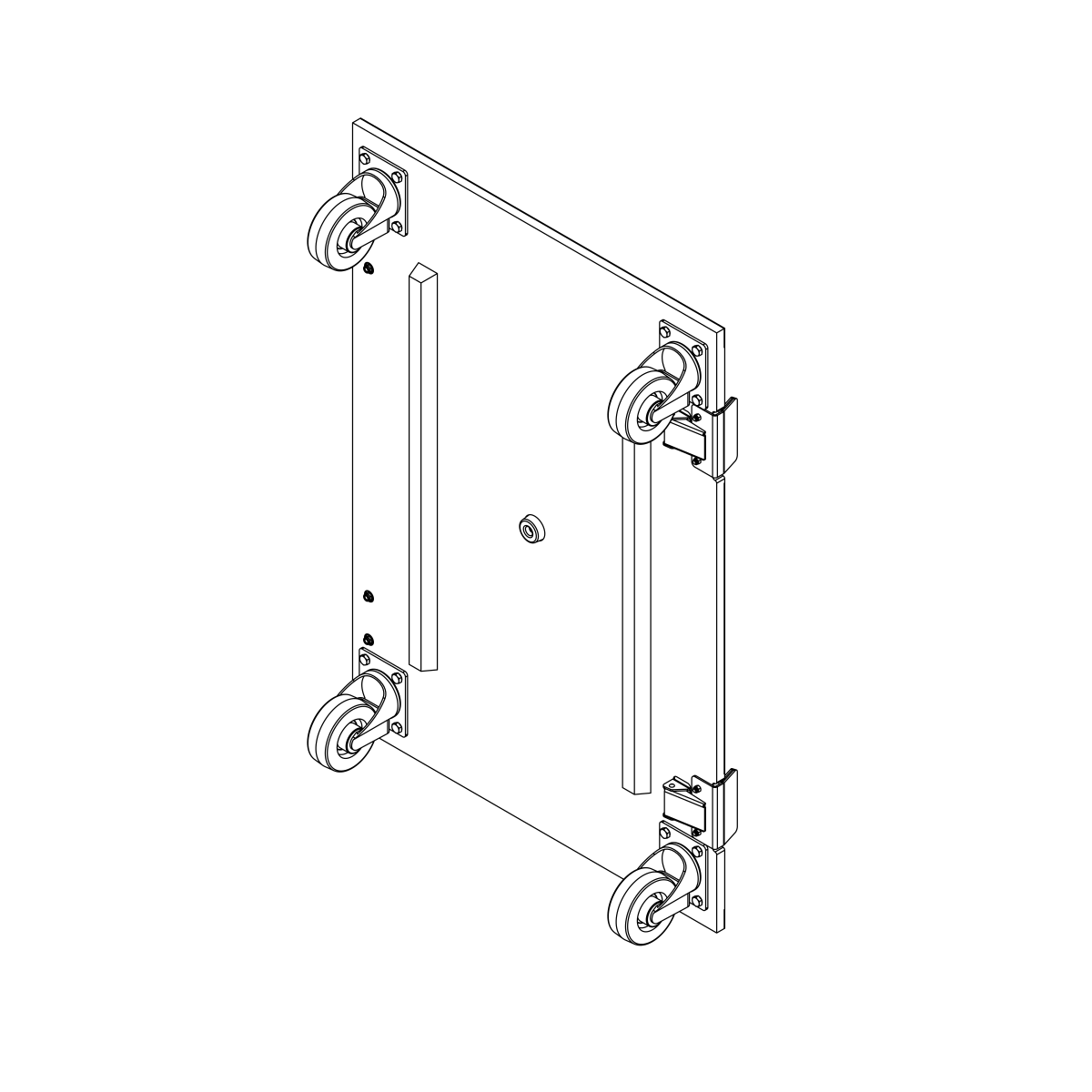

    Optional wheelboard, sturdy grille for discreet appearance
  • 7
    Evo 6EH and Evo 6SH mid-high versions also available

Technical Specification

Driver 15"
Operating Band 85Hz - 220Hz
Sensitivity at 1m 103dB at 2.8V
Power (AES) 400W
Nominal Impedence
Driver 10"
Operating Band 220Hz - 4kHz
Sensitivity at 1m 112dB at 4.9V
Power (AES) 250W
Nominal Impedence 24Ω
Driver 1.4"
Operating Band 4kHz - 18kHz
Sensitivity at 1m 114dB at 5.6V
Power (AES) 75W
Nominal Impedence 32Ω
Weight 57kg (126lbs) without wheelboard
Nominal Dispersion 50° Horizontal x 25° Vertical
Connectors 2 x Neutrik NL8
