Vertically Arrayable Medium Format Loudspeaker

Overview

VX90 is a three-way, vertically arrayable loudspeaker that features four Funktion-One designed Neodymium drivers in a horizontally symmetric configuration.

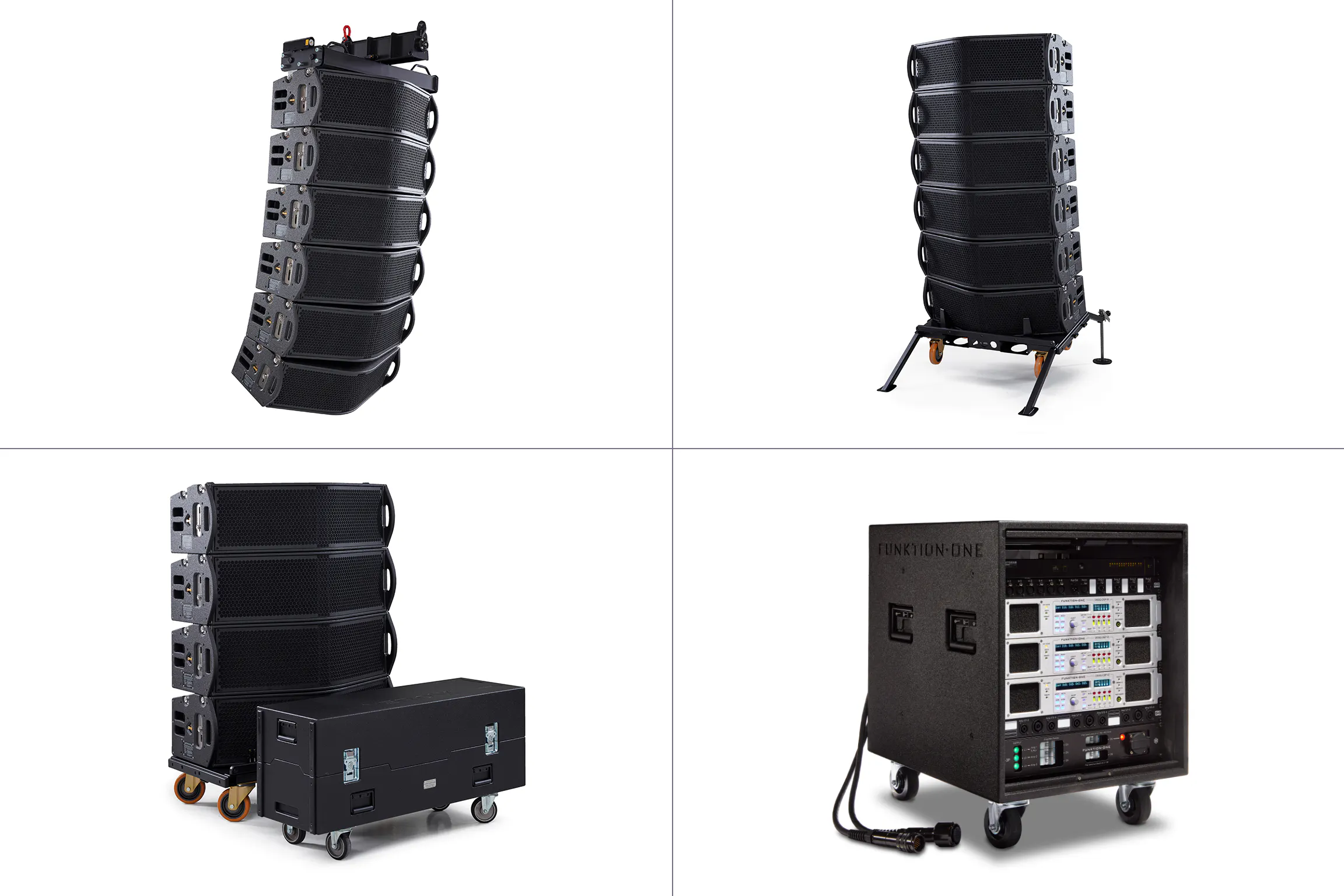

Two reflex loaded, high efficiency 12″ mid bass drivers, one Axhead loaded wide bandwidth 8″ cone midrange driver, and one 1″ compression driver on a proprietary isophase diffraction waveguide. Vero VX systems comprise VX90 full-range vertically arrayable loudspeakers, V124 or V221 bass enclosures, amp racks, fly bars, transport dollies, ground stack hardware, cabling and Projection system design software.

PERFORMANCE FEATURES

  • 1
    Natural and effortless vocal clarity
  • 2
    Isophase diffraction waveguide (HF) for coherent high frequency summation
  • 3
    Lambda rigging for accurate array alignment
  • 4
    Choice of motorised or static fly beams
  • 5
    High efficiency drivers giving dynamic headroom, high SPL and low amplifier count
  • 6
    Wide and consistent horizontal dispersion
  • 7
    No corrective EQ, maximising headroom
  • 8
    Very clean output, even at full power

Technical Specification

Driver 2 x 12"
Operating Band 45/85Hz - 280Hz
Sensitivity at 1m 100dB at 4V
Power (AES) 2 x 400W
Nominal Impedence 2 x 16Ω
Driver 1 x 8"
Operating Band 280Hz – 5kHz
Sensitivity at 1m 107dB at 4V
Power (AES) 200W
Nominal Impedence 16Ω
Driver 1 x 1"
Operating Band 5kHz – 18kHz
Sensitivity at 1m 109dB at 4V
Power (AES) 100W
Nominal Impedence 16Ω
USABLE BANDWIDTH (-3DB) 60Hz - 18kHz
Weight 70kg
Nominal Dispersion 90° Horizontal / 13° Vertical
Connectors 2 x Neutrik NLT8MP
